The latest version of Model RealTime is now 12.1.4. Let's look at some of the new features in this release.

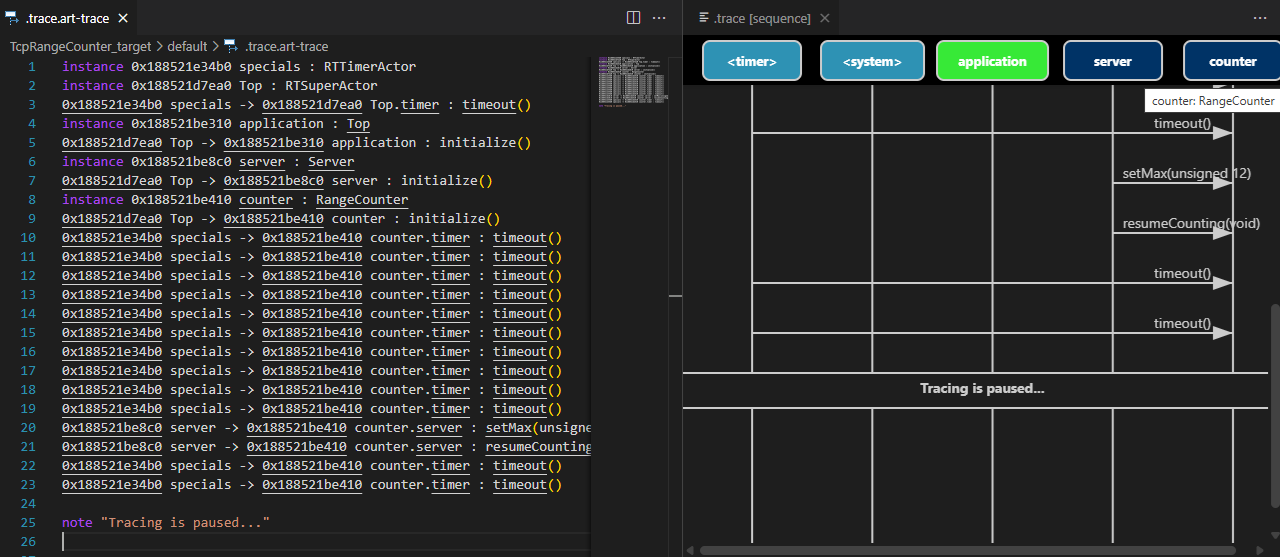

The default file format for traces captured from a running realtime application is now a new .art-trace format. It uses a small domain specific tracing language which has been designed to let LLMs "understand" it. The format contains more detailed runtime information than the .ms trace format and is a great help when troubleshooting problems in a running application. .art-trace files can be opened in Code RealTime to benefit from features such as syntax coloring and navigation. It's also possible to visualize such a trace file as a sequence diagram. Read more about this feature in the documentation.
Sometimes a capsule state machine may need to wait in a certain state until several events have been received, before transitioning to another state. The TargetRTS now provides a utility RTMultiReceive which makes it easier to implement this pattern. Read more about this feature in the documentation.

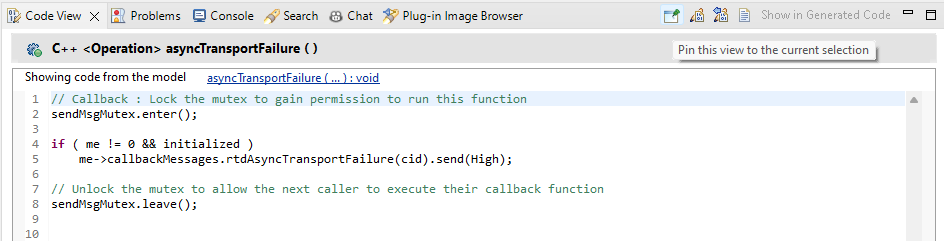

A new button in the Code View toolbar lets you pin the Code View to always show code for a specific element, even if the selected element is changed. This can for example be useful if you want to navigate to a function that is called from the code snippet shown in the Code View, but still keep that code snippet open.
When you have modified a property in the C++ General and C++ Target RTS property pages it's shown with bold font, and the property page is prefixed with the > character to make it easy to see what has been modified. You can now restore such a modified property to its default value by means of a new context menu command Restore to Default. If you want to restore all modified properties for the property page use the button Apply Defaults.
Mattias Mohlin
Architect for HCL Model RealTime
